 Word2DWG Details

Word2DWG is a revolutionary new way to solve the old problem of placing Word documents into CAD & Design applications.  It runs completely inside Microsoft Word, directly creating a DWG or DXF file as it's result.  You simply select your area of interest and click an icon to create the DWG file.  The best part is that as changes are made in Word the DWG files are updated when the document is saved or closed.  That means the next time the CAD project opens, the referenced document drawing reflects these changes!

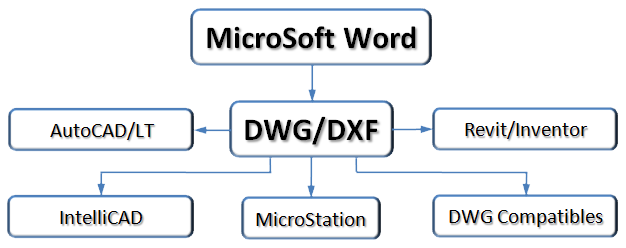

These DWG files (residing in document folder by default) can referenced by any DWG compatible software.  That means AutoCAD (even LT), Revit, Inventor, DWG Compatibles (BricsCAD, IntelliCAD, others) and even MicroStation can reference (or insert) the same file!



With years of experience in this area, we found that most groups use a mixture of products in completion of projects.  Now those groups can reference a single file across the entire project, regardless of the application!

User Interface
The application is controlled (in Word 2007 or higher) by it's own ribbon tab making it easy to select and execute the application.  On Word 2000-2003 it has it's own separate toolbar with icons.

System Settings
This dialog controls all the defaults for newly created document references.  Includes setting for overrides, factors and other options.  By default all output files go to the same folder as the document.  You can also designate a single folder for the DWG/DXF files.

Bookmark Manager
This dialog is a superset of Word's Bookmark Manager which allows you to rename, delete, identify, and purge named ranges.  You can also select multiple ranges and reprocess them, updating the DWG/DXF file referencing the range.

Features Supported:
● Tabs
● Line Numbering
  ● Bullets
● Inline Images

Additional Features
Uses named bookmarks, allowing the results to grow/shrink as you insert/delete paragraphs.
Manage multiple document ranges easily.
Exclusive column wrapping.  Users can specify the maximum column height and gap distance. The results will flow to the designated height, then move up and to the right to continue until done.

Licensing
The program resides exclusively inside Word and all the work is done from that application.  Therefore you need a Word2DWG license for each Word seat that will be involved in editing documents that CAD users need to reference.

Requires:
 ● Word 2000 or higher.
 ● DWG 2000 Compatible software.
 ● Microsoft Windows XP or higher.
 ● Microsoft .NET Framework 2.0 or higher.
   (Free download from Microsoft, likely already installed)

Product Support: Email Support Only

Product Eval: Available on Request.

Pricing:
Product Save Price Link
Single:   $60

Buy Now!

5-Pack: 10% $270

Buy Now!

10-Pack: 15% $510

Buy Now!

20-Pack: 20% $960

Buy Now!

50-Pack: 30% $2100

Buy Now!

Site/Corp:   Varies

Contact
